ETAL — Extract. Tree. Auto Link.
A complete SoC integration solution for IC engineers working with complex multi-IP designs — smart Verilog visualization, connection diagnosis, and clock/reset tree analysis in one view.
Built for IC engineers working with complex multi-IP designs
Smart Verilog Visualization
Load and analyze complex Verilog hierarchies with visualization built for multi-IP SoC designs.
Efficient Code Navigation
Move between definitions, references, and instances with integrated cross-reference tracking.
Automated Issue Detection
Automatically identify connection issues, including floating ports across the hierarchy.
Intelligent Connection Repair
Fix connections with cross-hierarchy instance linking and intelligent auto-connection.
Interactive Clock/Reset Views
Visualize clock and reset trees with interactive, presentation-ready schematics.
Connection Mapping Analysis
Detect, visualize, and repair connection issues with one click.
Smart suggestions map the full path from definition to instance, so engineers can validate corrections in seconds — not hours.

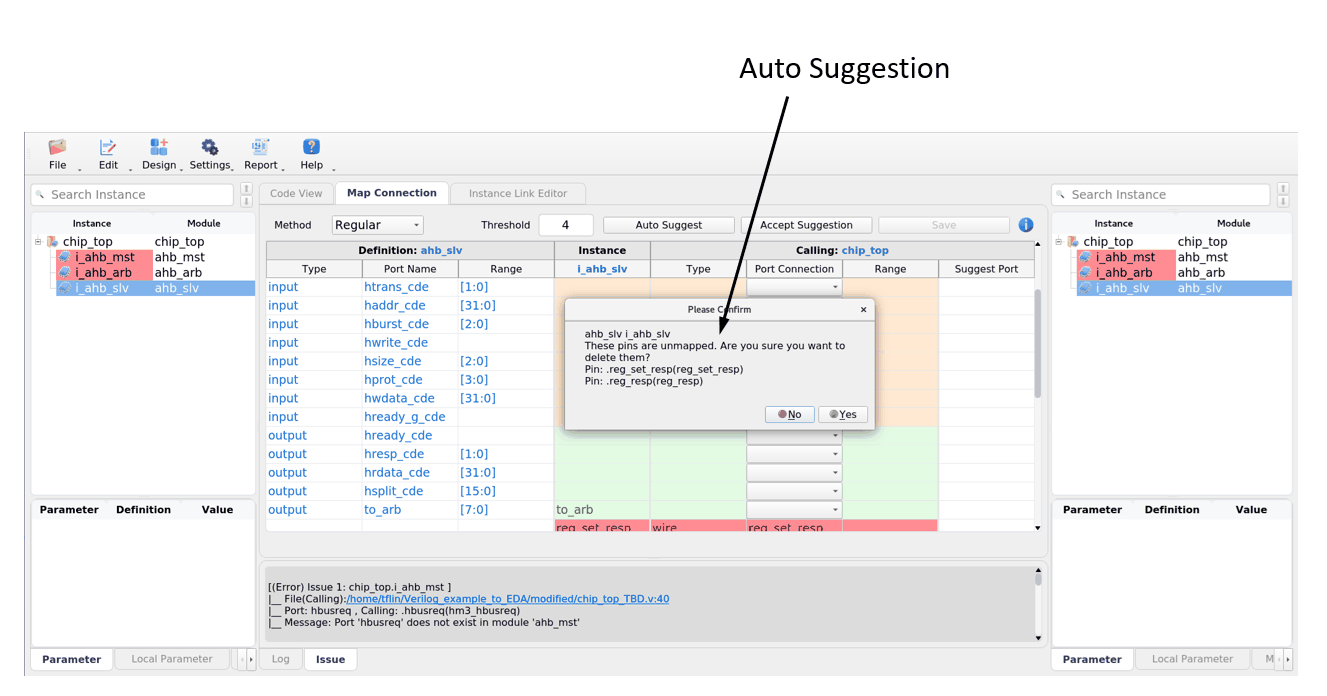

Smart Suggestions
Instantly proposes corrections for detected issues, mapping the full path from source definition to instance, related port definition, and suggested target port.
One-Click Fixes
Applies validated corrections in one click, cutting debugging time from hours to seconds.
User Control
Supports custom fixes when automatic suggestions fall short, giving engineers full control over manual corrections.

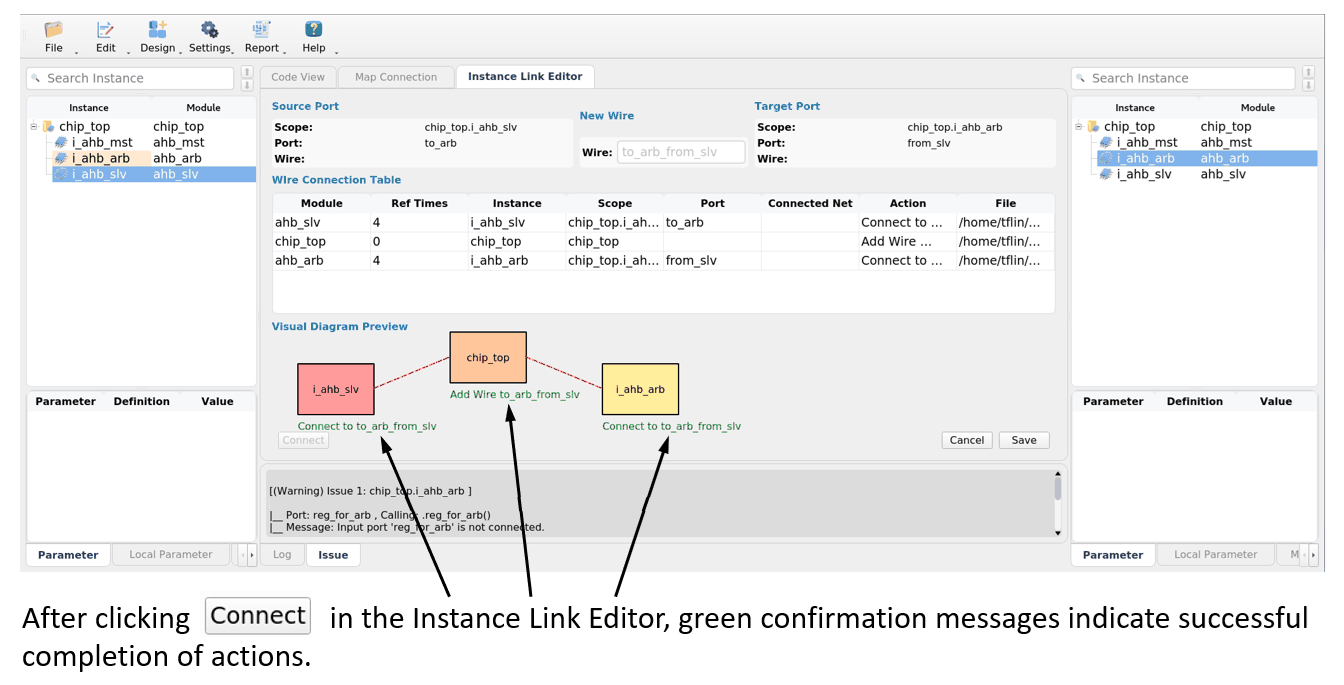

Instance Link Editor
Connection management built for complex SoC hierarchies.
- Instant Port Linking
Link ports between any two instances across the hierarchy.
- Smart Auto-Connection
Auto-completes intermediate connections with intelligent path analysis.
- Cross-Hierarchy Support
Connect intelligently across multiple design levels.
- Auto Repair
Detects and repairs broken links automatically, then confirms every fix.
Advanced Feature
Visual Clock/Reset Tree Analysis
Key Capabilities
Instant Professional Visualization

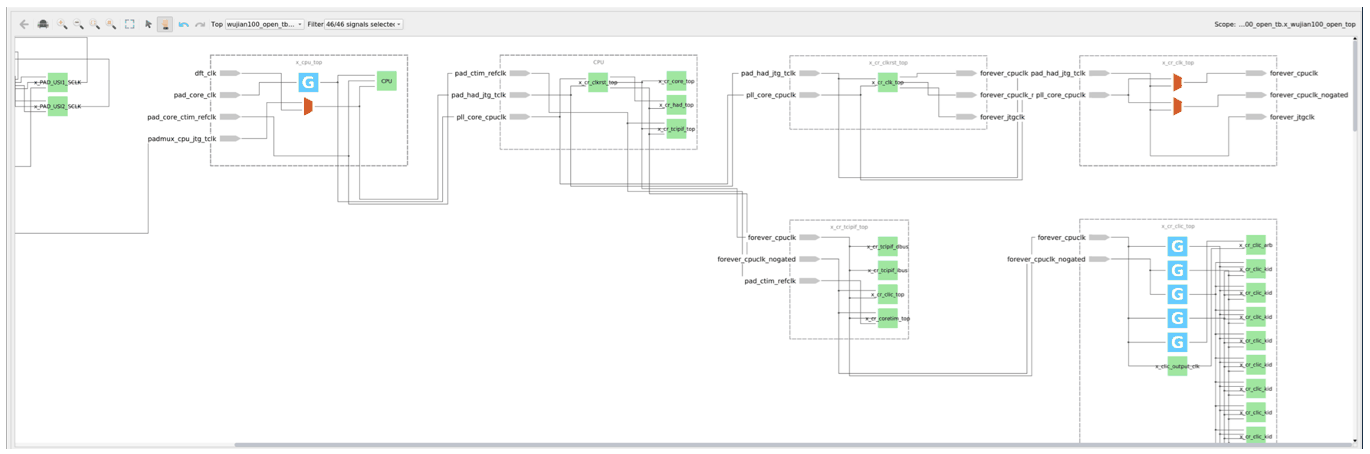

Auto-generate clock/reset tree schematics directly from Verilog.
Interactive Controls
RTL tree viewing, signal path tracing, zoom controls, and PDF export.
Code Integration
Right-click any node or signal to jump straight to the corresponding source.
Streamline your SoC integration workflow.
Talk to our team about how ETAL can accelerate your design integration and debugging.
